torus

FV = torus(; r=2.0, R=5.0, center=(0.0, 0.0, 0.0), nx=100, ny=50)::GMTfv

Create a torus mesh with radius r.

Kwargs

• r: the inner radius of the torus.

• R: the outer radius of the torus.

• center: A 3-element array or tuple of three numbers defining the origin of the body. Default is (0.0, 0.0, 0.0).

• nx: the number of vertices in the xx direction.

• ny: the number of vertices in the yy direction.

Returns

A GMTfv FacesVertices object.

Example

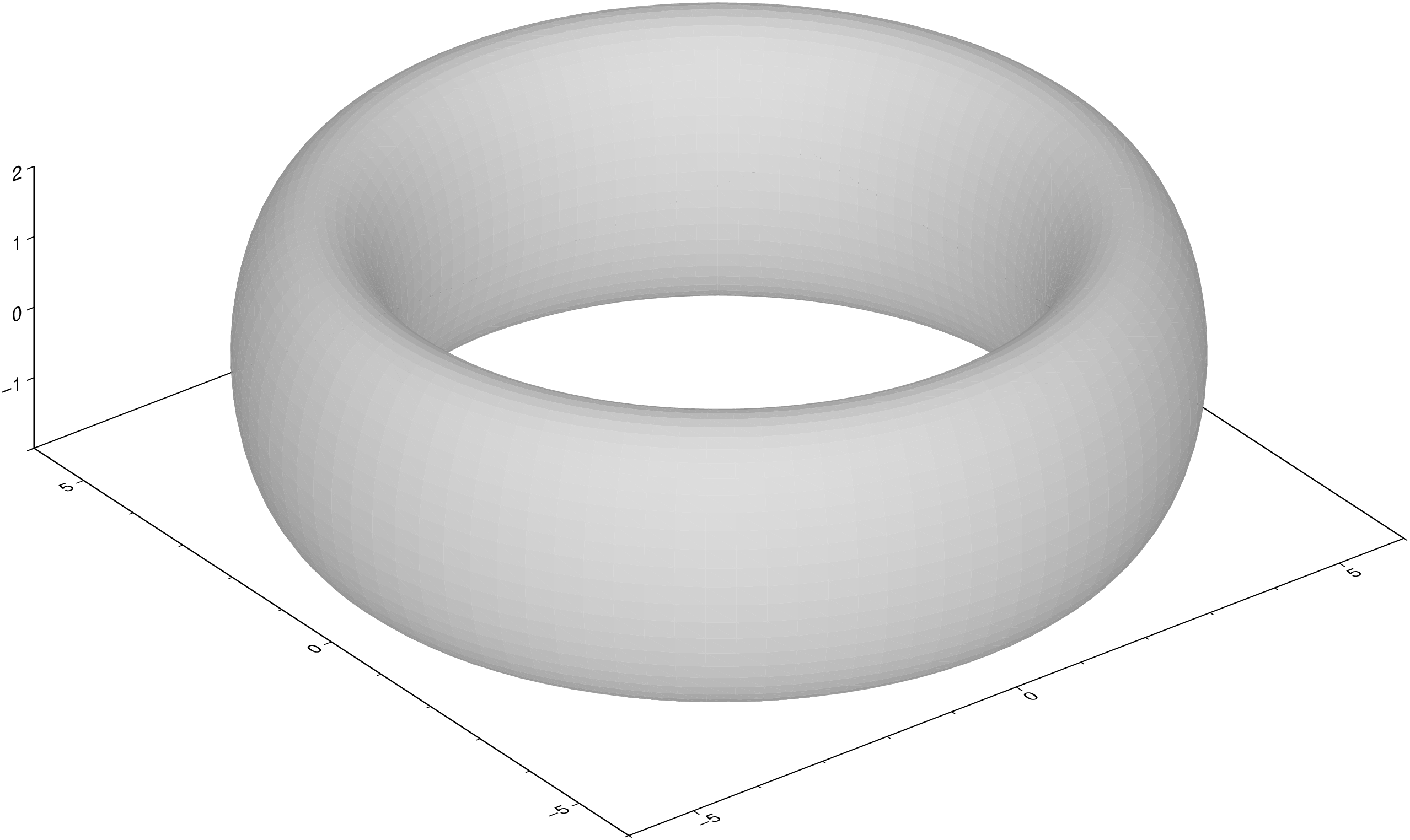

Create a torus with radius = 1, and two iterations. Create a torus using the default values.

using GMT

FV = torus();
viz(FV)

See Also

cube, cylinder, dodecahedron, icosahedron, octahedron, replicant, sphere, tetrahedron
